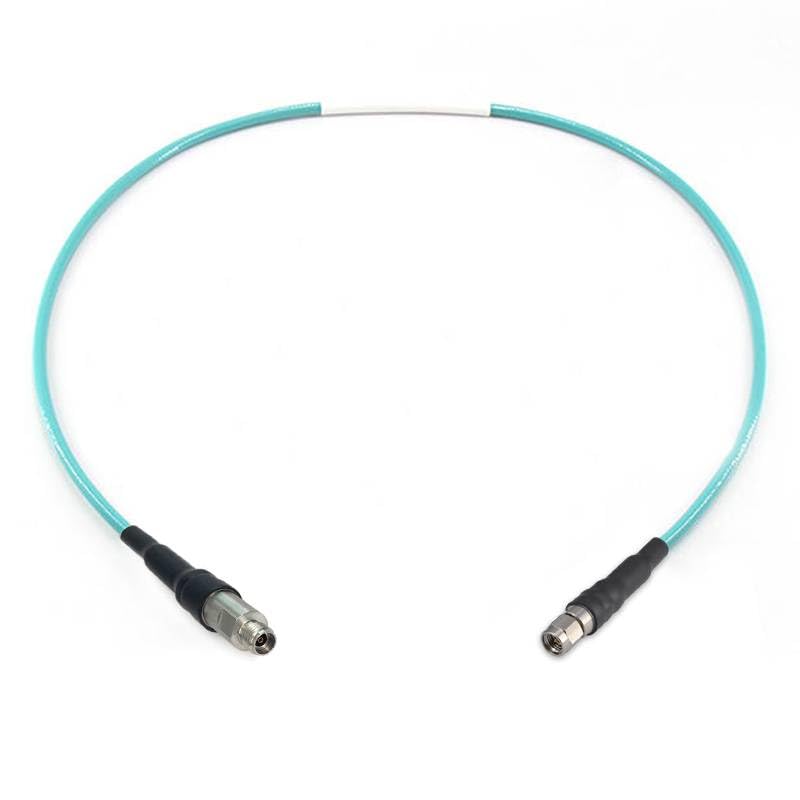

2.92mm RF Cable Assembly, Male to Female Connector, 40GHz Flexible Coax (500 mm)

This high-performance 2.92mm Male to 2.92mm Female cable assembly delivers exceptional microwave performance for demanding RF applications up to 40GHz. Featuring low-loss phase stable flexible coax construction, this versatile cable ensures reliable signal transmission with minimal insertion loss and VSWR. The robust stainless steel connectors with passivated plating can withstand 500+ mating cycles and operate reliably from -55°C to +165°C. Perfect for military, space, RF communication, test & measurement, and industrial applications, this cable combines flexibility with durability. Available in custom lengths with phase-matching options, this assembly is part of our extensive RF product line that ships worldwide. The flexible 3.73mm diameter cable makes installation and routing convenient while maintaining superior electrical performance. Each cable undergoes precise manufacturing to meet the exacting standards of professional RF applications.

• CONNECTOR CONFIGURATION: 2.92mm Male to 2.92mm Female cable assembly with straight body style and standard polarity for both connectors.
• FREQUENCY RANGE: Operates from DC to 40GHz, ideal for military, space, RF communication, test & measurement, and industrial applications.
• CABLE SPECIFICATIONS: Features low-loss phase stable flexible coax with 3.73mm outer diameter and 50 Ohm impedance for excellent microwave performance.
• CONSTRUCTION: Stainless steel connectors with passivated plating, designed for 500+ mating cycles and operating temperature range of -55°C to +165°C.
• CUSTOMIZATION OPTIONS: Available in custom lengths with phase-matched pairs or groups upon request, standard length is 500mm.
